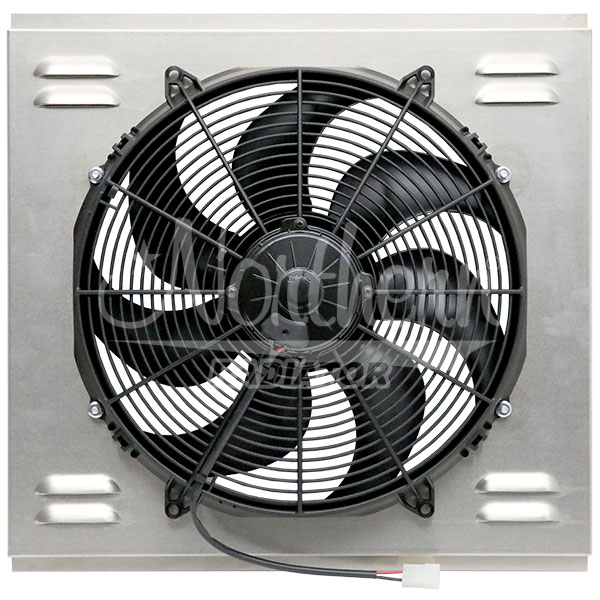

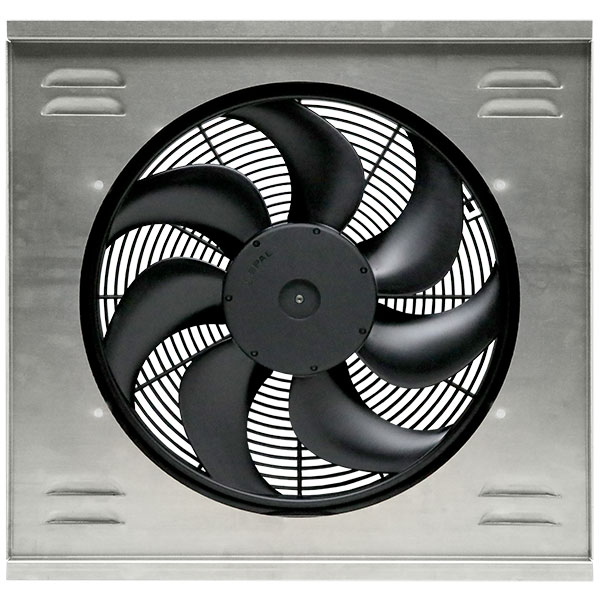

Single High CFM 16" Electric Fan & Shroud - 18 1/4 x 20 5/16 x 4

Z40074
  • Overall Depth: 4
  • Overall Height: 18 1/4
  • Overall Length: 20 5/16
  • Total Amp Draw: 22.6
  • Total CFM: 1917

Fits: Radiators 209671, 209675209613, 209617, 209635, 209636205152

Rated for applications with horsepower greater than 390

Wiring Harness not included. Please See:

  • Z40079 Pigtail Connector (1 per fan, only required if not using Northern relay harness)
  • Z40080 Relay Harness
  • Z40078 Relay Harness with Temp Switch
  • Z18350 PWM Fan Control Kit

All wiring harnesses and PWM sold separately

  • Item Details

Fan Shroud Dimensional Specs

PART # # of Fans A B C D E F FAN SIZE TOTAL AMP DRAW TOTAL CFM
Z40074 1 3/4 5/8 1/2 18 1/4 20 5/16 4 16" 18.5 1917 (RATED AT ZERO STATIC PRESSURE)
